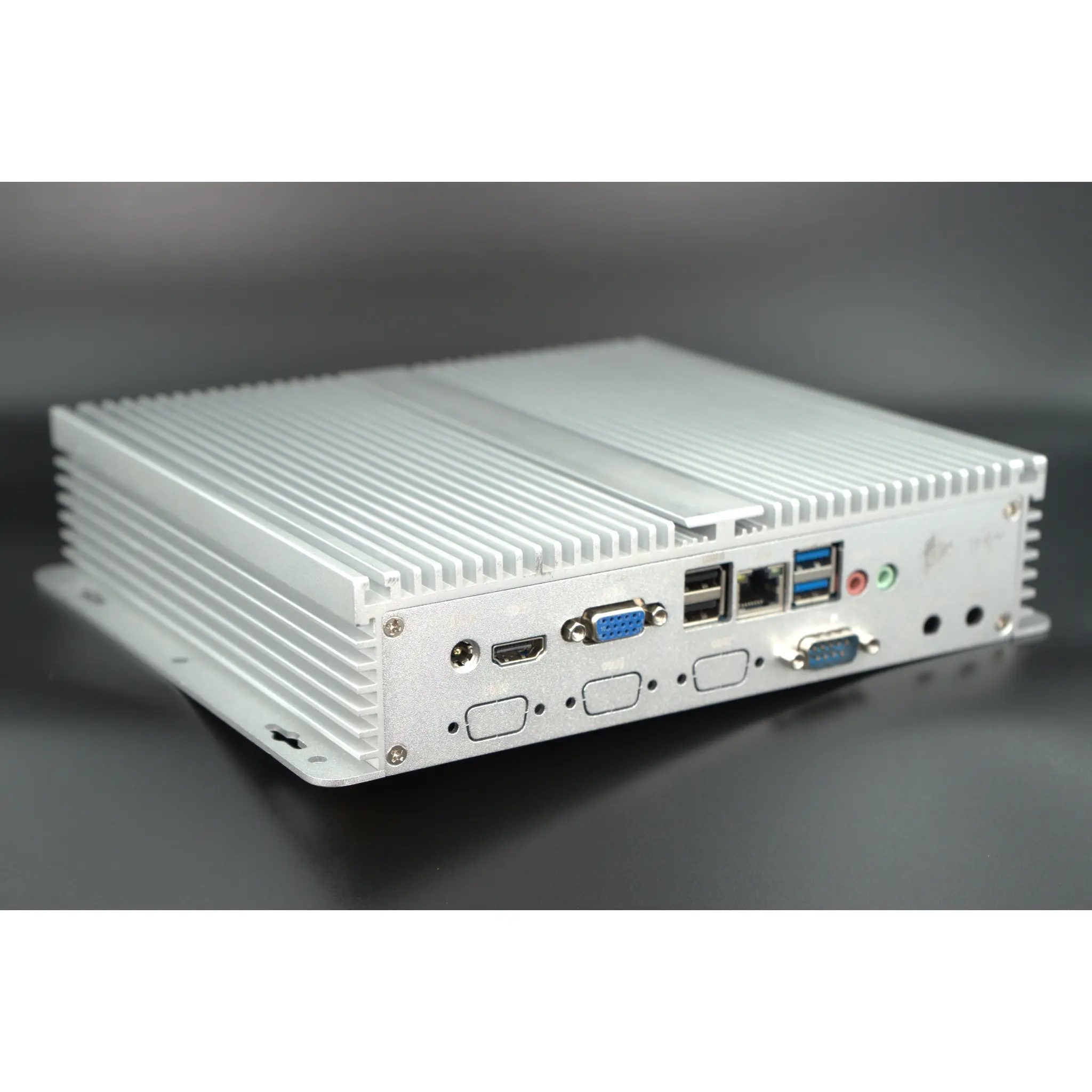

IPC3 Range of Industrial PCs Render Perspective view
IPC3 Range of Industrial PCs Render Perspective view
IPC3 Range of Industrial PCs ont Perspective view
IPC3 Range of Industrial PCs ar Perspective view

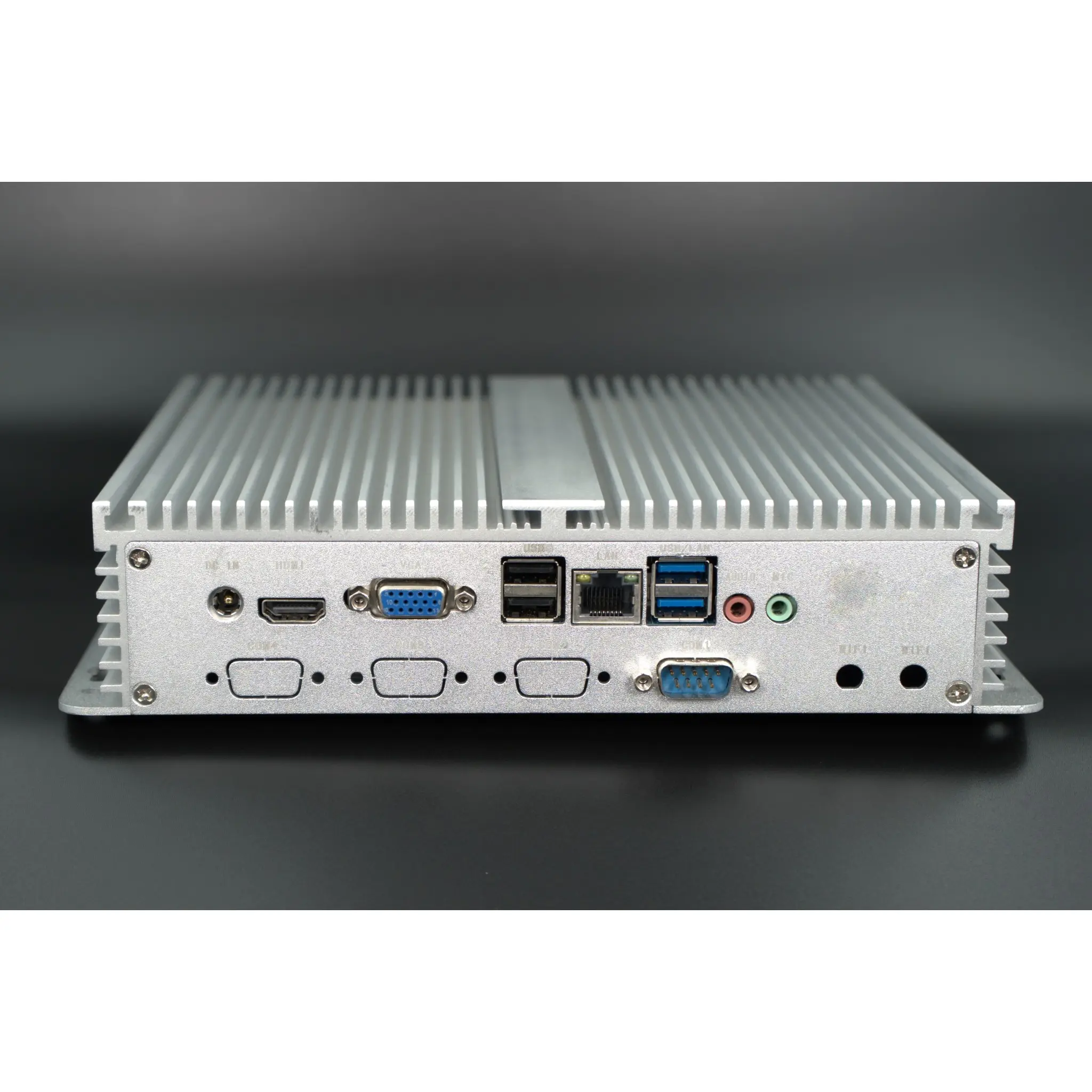

IPC3 Range of Industrial PCs ar view

IPC3 Range of Industrial PCs

Thinvent IPC3: Rugged, Reliable, and Fanless Industrial Computing Power

Processor:
RAM:
SSD Storage:
Wireless:
Operating System:
Accessories:
RAM:
SSD Storage:
Wireless:
Operating System:
Accessories:
Specifications
Main Memory 4 GB ~ 64 GB
SSD Storage 128 GB ~ 1 TB
HDMI 1
VGA Yes
Speaker Out Yes
Mic In Yes
USB 3.0 2
USB 2.0 2
Front USB 2.0 4
Ethernet 1 Gbps
Serial Port Up to 5
RS485 Port Optional
DC Voltage 12 Volts
DC Current 5 Amps
Power Input 100~240 Volts AC, 50~60 Hz, 1.5 Amps maximum
Cable Length 2 Metre
Operating Temperature 0°C ~ 50°C
Operating Humidity 20% ~ 80% RH, non condensing
Certifications BIS, RoHS, ISO

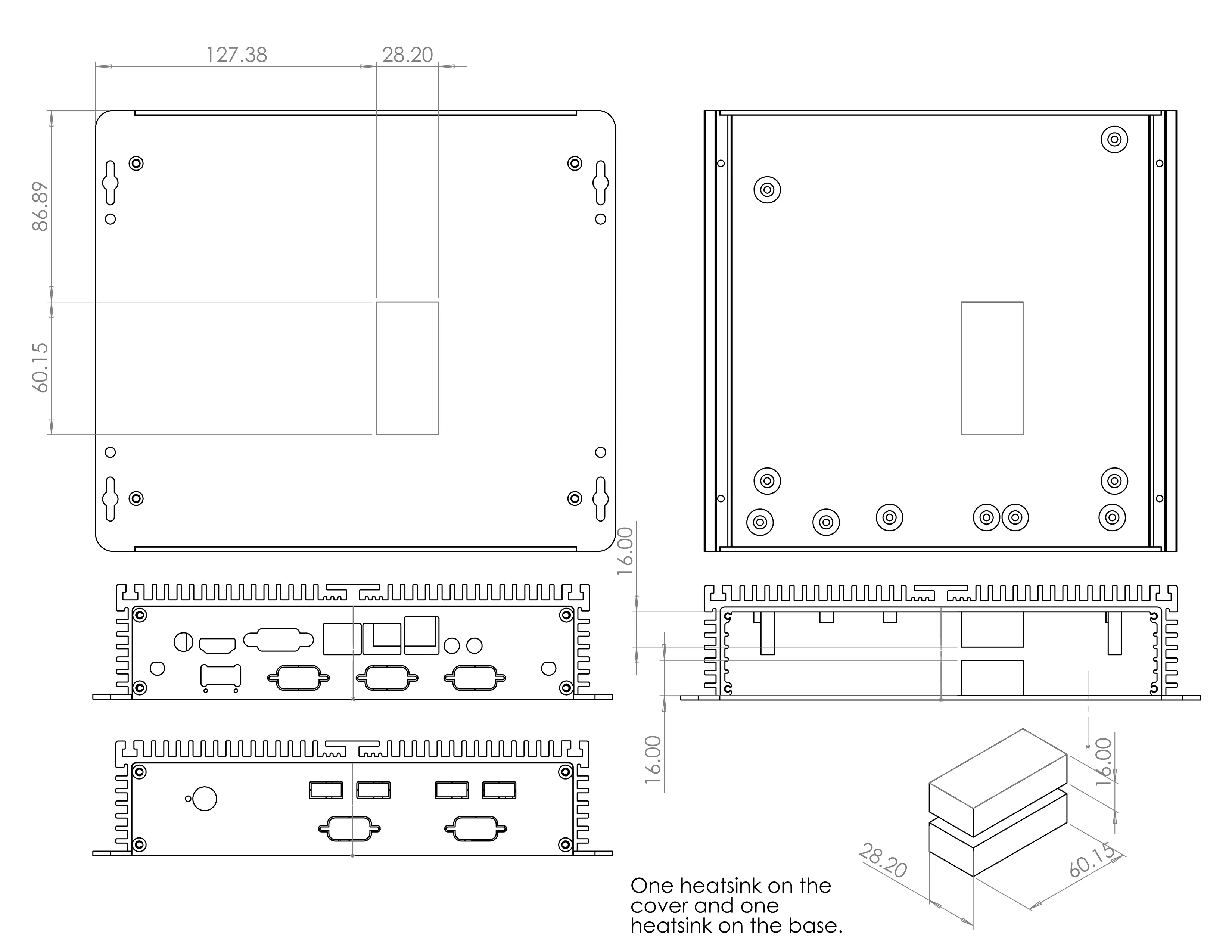

Dimensions 200mm × 184mm × 52mm
Housing Material Aluminium
Housing Finish Anodised
Housing Colour Silver
Wall Mount Yes
Assembly Animation

The Thinvent IPC3 series redefines industrial computing with its robust, fanless design and unwavering reliability. Crafted from solid, precision-milled extruded aluminum, the IPC3 is engineered to withstand the harshest environments, ensuring continuous operation in demanding industrial settings.

Built for Extreme Conditions

Designed for 24/7/365 operation, the IPC3 thrives in environments where traditional PCs would fail. Its fanless and ventless design eliminates the risk of dust and particle ingress, while its solid aluminum construction provides exceptional resistance to heat, vibration, and polluted air. Advanced thermal management, utilizing composite materials, ensures optimal performance even under extreme temperatures.

Uncompromising Reliability and Performance

The Thinvent IPC3 delivers consistent and dependable performance for critical industrial applications.

  • Robust Construction: Solid extruded aluminum housing with an anodized silver finish.
  • Fanless and Ventless Design: Eliminates dust and particle ingress, ensuring long-term reliability.

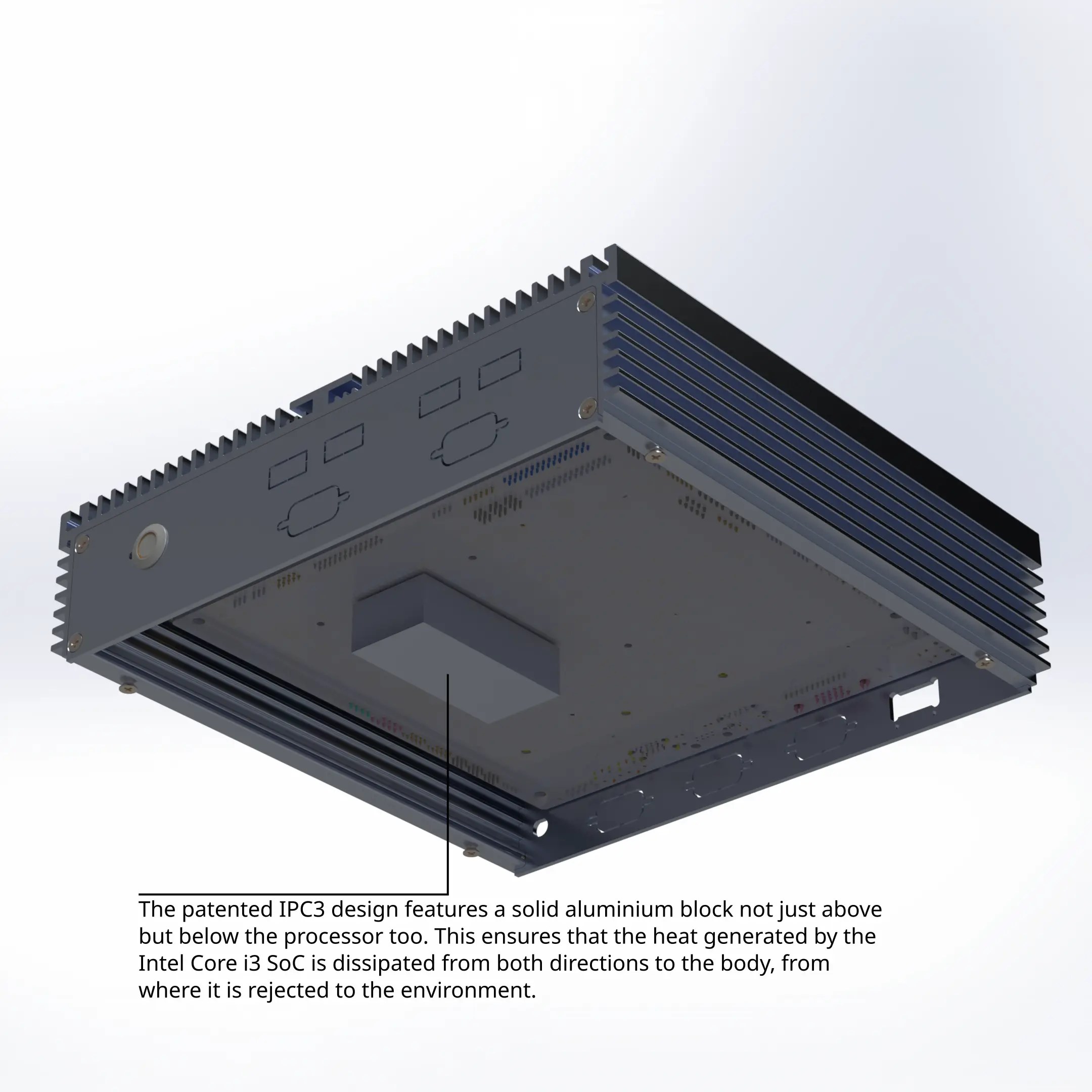

  • Advanced Thermal Management: Composite materials for efficient heat dissipation.
  • Wide Operating Temperature: 0°C to 50°C, suitable for diverse industrial environments.
  • High Humidity Tolerance: 20% to 80% RH, non-condensing.
  • 24/7/365 Operation: Engineered for continuous, uninterrupted performance.
Flexible Configuration and Connectivity

The IPC3 offers a range of configuration options to meet your specific needs.

  • Memory: 4 GB to 64 GB of main memory for seamless multitasking.
  • Storage: 128 GB to 1 TB SSD storage for fast and reliable data access.
  • Video Outputs: 1 x HDMI and VGA for flexible display options.
  • USB Ports: 2 x USB 3.0, 2 x USB 2.0 (rear), and 4 x USB 2.0 (front) for peripheral connectivity.
  • Audio: Speaker Out and Mic In for audio applications.
  • Networking: Gigabit Ethernet (1 Gbps) for high-speed network connectivity.
Industrial-Grade Certifications and Design

The IPC3 is designed and certified to meet the highest industry standards.

  • Certifications: BIS, RoHS, and ISO certified, ensuring quality and compliance.
  • Wall Mountable: Designed for easy integration into industrial setups.
  • Compact Dimensions: 200mm × 184mm × 52mm for space-saving installation.
  • Power Input: 100~240 Volts AC, 50~60 Hz, 1.5 Amps maximum.
  • DC Voltage: 12 Volts, 5 Amps.
  • Power Cable: 2 Meter.
Ideal Applications
  • Industrial Automation
  • Manufacturing Control
  • Process Monitoring
  • Digital Signage in Harsh Environments
  • Transportation Systems
  • Environmental Monitoring
  • Any application requiring reliable, fanless, 24/7 operation.

The Thinvent IPC3 range of industrial PCs provides a robust, reliable, and fanless computing solution designed to thrive in the most demanding industrial environments.
