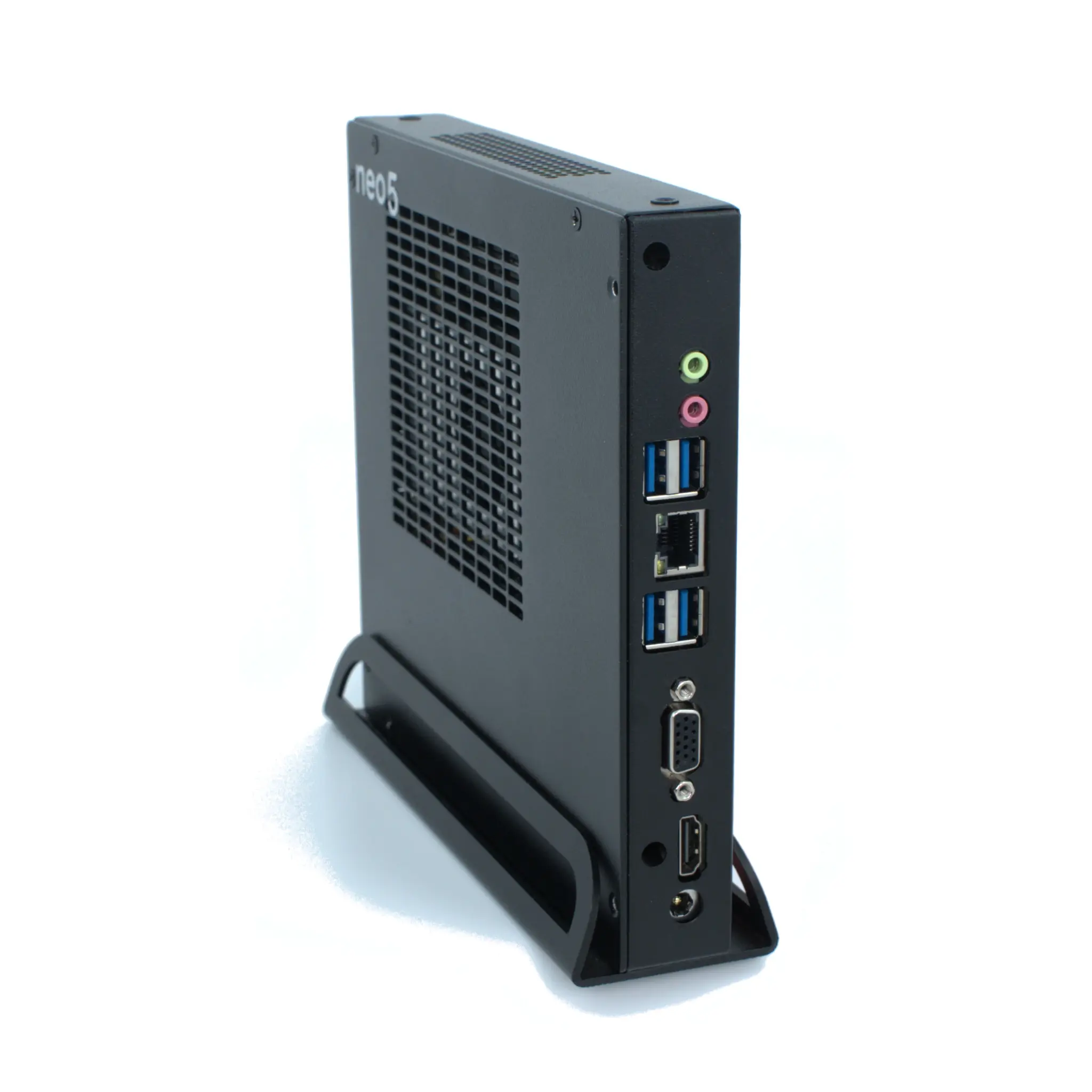

Treo Range of Mini PCs | Treo N5095A Rear Standing Top Perspective view

Treo Range of Mini PCs

The Thinvent Treo range of mini PCs offers exceptional performance and flexibility in a sleek, compact design. Built with a durable aluminum housing and designed for a wide range of applications, the Treo series provides a customizable computing experience to meet your specific requirements.

Processor:
RAM:
SSD Storage:
Wireless:
Operating System:
Accessories:
RAM:
SSD Storage:
Wireless:
Operating System:
Accessories:
RAM:
SSD Storage:
Wireless:
Operating System:
Accessories:
RAM:
SSD Storage:
Wireless:
Operating System:
Accessories:
RAM:
SSD Storage:
Wireless:
Operating System:
Accessories:
RAM:
SSD Storage:
Wireless:
Operating System:
Accessories:
Specifications
Processing
Main Memory 4 GB ~ 64 GB
SSD Storage 128 GB ~ 1 TB
Display
HDMI 1 ~ 2
VGA Yes
Audio
Speaker Out Yes
Mic In Yes
Front Speaker Out Yes
Front Mic In Yes
Connectivity
USB 3.0 2 ~ 4
USB 2.0 0 ~ 2
Front USB 2.0 4
Networking
Ethernet 1000 Mbps
Power
DC Voltage 12 Volts
DC Current 2 ~ 7 Amps
Power Input 100~240 Volts AC, 50~60 Hz, 0.9 Amps maximum
Cable Length 1 Metre
Environmental
Operating Temperature 0°C ~ 40°C
Operating Humidity 20% ~ 80% RH, non condensing
Certifications BIS, RoHS, ISO
Physical
Dimensions 199.5mm × 181.5mm × 29.5mm
Housing Material Aluminium
Housing Finish Powder Coated
Housing Colour Black
Accessories
VESA Mount Yes
Processor Performance Comparison
Assembly Animation

Performance That Scales With Your Demands

The Thinvent Treo is available with a choice of powerful Intel processors, ensuring you get the perfect balance of performance and efficiency

  • Entry-Level Power: Intel® processor N5095A (4 core, up to 2.9 GHz, 4 MB cache) or Intel® processor N97 (4 core, up to 3.6 GHz, 6 MB cache) for everyday tasks.
  • Balanced Performance: Intel® Core™ i3-1215U, i3-1315U (6 core, up to 4.4/4.5 GHz, 10 MB cache) or Intel® Core™ 5 120U (10 core, up to 5.0 GHz, 12 MB cache) for enhanced productivity.
  • High-Performance Computing: Intel® Core™ i5-1250P or i5-1335U (10/12 core, up to 4.4/4.6 GHz, 12 MB cache) for demanding applications.

Comprehensive Connectivity for Seamless Integration

The Thinvent Treo boasts a wide array of ports for connecting all your peripherals

  • Video Outputs: 1 x HDMI, 1 x VGA for dual display support.
  • Audio: Speaker Out (front), Mic In (front).
  • USB: 2 x USB 3.0 (rear), 2 x USB 2.0 (rear), 4 x USB 2.0 (front).
  • Networking: 1 x Gigabit Ethernet (1000 Mbps).

Customizable Operating Systems and Wireless Connectivity
Tailor your Treo mini PC to your specific needs with a choice of operating systems
  • Windows 11 IoT
  • Windows 11 Pro
  • Ubuntu Linux

Choose your preferred wireless connectivity option
  • No WiFi
  • Dual Band WiFi

Durable and Versatile Design

The Thinvent Treo features a robust aluminum housing with a sleek, powder-coated black finish. Its compact dimensions (199.5mm × 181.5mm × 29.5mm) and VESA mount compatibility allow for flexible placement in any environment.

Reliable and Certified

Designed for reliability, the Treo operates on a 12V DC, 2A power supply with a wide-range AC input (100~240V, 50~60Hz). It is built to operate in environments with temperatures ranging from 0°C to 40°C and humidity levels of 20% to 80% RH (non-condensing). The Thinvent Treo is RoHS and ISO certified, ensuring compliance with stringent quality and safety standards.

Key Features
  • Choice of Intel Processors: N5095A, N97, i3-1215U, i3-1315U, i5-1250P, i5-1335U, Core 5 120U.
  • Choice of Operating Systems: Windows 11 IoT, Windows 11 Pro, Ubuntu Linux.
  • Choice of WiFi: No WiFi, Dual Band WiFi.
  • HDMI and VGA for Dual Display
  • Extensive USB Connectivity (USB 3.0, USB 2.0)
  • Gigabit Ethernet
  • Front and Rear Audio Ports
  • Durable Aluminum Housing
  • VESA Mount Compatible
  • RoHS and ISO Certified
  • 1 Metre Power Cable
  • Power input 100~240 Volts AC, 50~60 Hz, 0.9 Amps maximum
  • DC Voltage 12 Volts, DC Current 2 Amps.

Ideal For
  • Business Professionals
  • Home Offices
  • Small Businesses
  • Industrial Control
  • Digital Signage
  • Thin Client Applications
  • Education

The Thinvent Treo range of mini PCs offers a powerful, customizable, and reliable computing solution for a wide range of needs.
